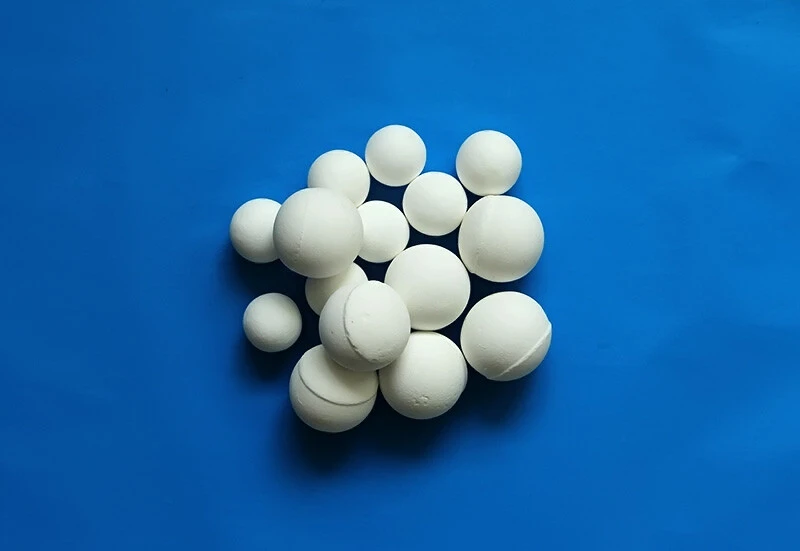

Alumina Filling Ball

Alumina Filling Ball

Alumina Ceramic Ball
Main characteristics
High purity: The alumina content is usually above 99% to ensure chemical stability.
High hardness: The Mohs hardness reaches 9, with strong wear resistance and compression resistance.
High temperature resistance: able to withstand high temperature environments, typically used at temperatures above 1600 ℃.
Corrosion resistance: It has good corrosion resistance to chemicals such as acids and alkalis.
High specific surface area: Provides a larger contact area, suitable for processes such as adsorption and catalysis.
Low packing density: Reduce equipment load and lower energy consumption.

Product Description

Inert Catalyst Bed Support Media

Alumina Filling Ball / Inert Ceramic Spheres

High-Purity Catalyst Bed Support & Packing Media for Chemical Vessels

Al₂O₃ Content
92%–99%
High Chemical Inertness
Water Absorption
≤ 1.0%
Low Porosity Structure
Max Temp
1650°C
Thermal Shock Resistant
Mohs Hardness
8.5 - 9.0
High Crush Strength

Alumina Filling Ball

     High-Sphericity & Smooth Surface Finish

Key Technical Capabilities

  •          Thermal & Chemical Stability: Resistance to high temperatures, strong acids, alkalis, and organic solvents.
  •          High Crush Strength: Withstands heavy compressive loads and intense fluid dynamics without fracturing.

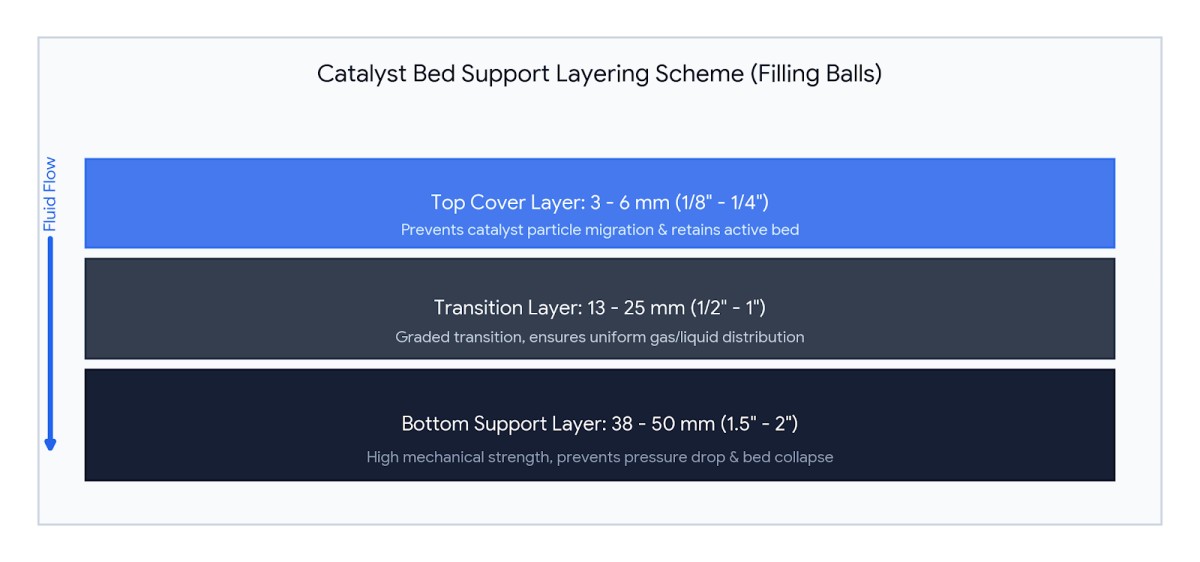

  •          Fluid Distribution Optimization: Acts as an efficient bed support, preventing channeling and improving reaction efficiency.

Diameter Specifications

3 mm (1/8")          6 mm (1/4")          10 mm (3/8")          13 mm (1/2")          19 mm (3/4")          25 mm (1")          38 mm (1.5")          50 mm (2")

Alumina Filling Ball

Custom Size Layering Available Upon Request

Technical Data Sheet (TDS)

Property Parameter92% Grade99% High-Purity
Al₂O₃ Content (%)≥ 92.0≥ 99.0
SiO₂ Content (%)≤ 6.0≤ 0.5
Fe₂O₃ Content (%)≤ 0.25≤ 0.05
Water Absorption (%)≤ 1.0≤ 0.5
Bulk Density (g/cm³)1.9 – 2.12.0 – 2.2
Specific Gravity (g/cm³)3.2 – 3.43.6 – 3.8
Acid Resistance (%)≥ 99.0≥ 99.6
Alkali Resistance (%)≥ 98.0≥ 99.0
Crush Strength (1/2")> 2.5 kN/ball> 3.2 kN/ball

Primary Industrial Applications

Petrochemical & Refining
Ideal bed support for hydrocracking, catalytic reforming, and alkylation reactors.
Chemical Processing
Used in ammonia synthesis, methanol reactors, and gas drying towers to support active catalyst layers.
Environmental Engineering
Deployed in RTO/RCO thermal oxidizers and gas desulfurization systems for heat exchange.

Request Samples & Custom Bed Layering Solutions

Supplied with ISO 9001 quality certificates, SGS testing reports, and custom packaging.
