High-Performance Activated Alumina Desiccant (γ-Al2O3)
Engineered for Heatless & Heated Regenerative Air Dryers, Compressed Air Systems, and Air Separation Units (ASU). Achieving pressure dew points down to -70°C (-94°F) with minimal attrition.
Dew Point: Down to -70°C Static Water Adsorption: ≥ 18.0 wt% Sizes: 3-5mm (1/8"), 4-6mm (3/16"), 5-8mm (1/4")

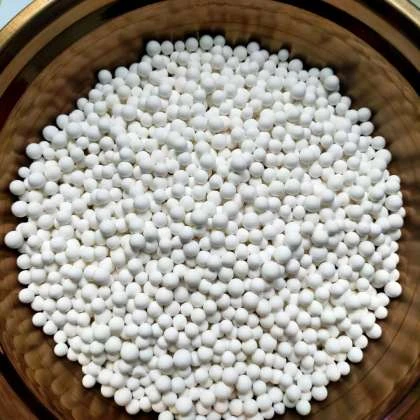

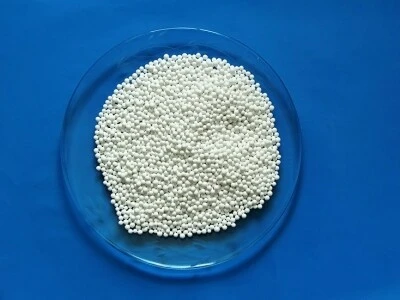

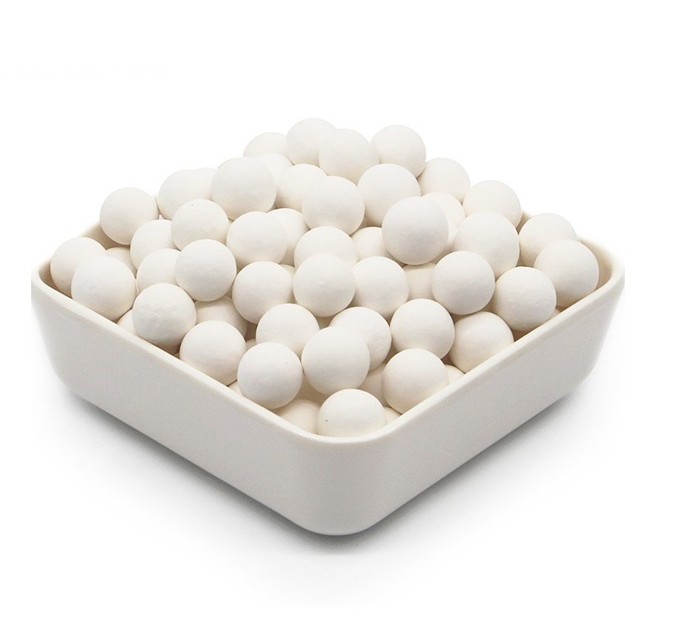

High-purity spherical activated alumina beads with smooth surface & uniform size.
Critical Performance Features for Air Dryers
- Ultra-Low Pressure Dew Point: Exceptional pore structure allows rapid water vapor trapping, delivering consistent dew points from -40°C to -70°C.
- High Crush Strength & Zero Dusting: Superior mechanical hardness prevents bead crushing under pressure swing, protecting downstream pneumatic valves, filters, and instruments from clogging.
- Excellent Hydrothermal Stability: Resists thermal degradation during continuous purge gas regeneration cycles (170°C - 250°C).
- High Water Resistance: Maintained structural integrity even under liquid water slug impact at bed inlets.
Desiccant Grade Engineering Benchmarks
Water Adsorption Capacity
18.0 %
Static water uptake at 60% Relative Humidity (RH) ensures longer bed operation cycles.
Crush Strength (4-6mm)
180 N / bead
High mechanical resistance prevents bed compaction and channeling during high flow rates.
Attrition Rate (Dusting)
0.1 %
Minimal surface abrasion preserves downstream particulate filter lifespan.
Why Choose AluminaWorld Activated Alumina?
✔ Strict Pore Control
Optimized macropore-mesopore distribution for rapid moisture diffusion and low pressure drop.
✔ Zero Channelling
Highly uniform spherical shape prevents dead zones and gas channelling inside large towers.
✔ Long Regeneration Life
Withstands hundreds of thermal swing and pressure swing cycles without structural breakdown.
✔ Global Compliance
Manufactured under strict ISO9001 standards, supported by full CoA and MSDS documentation.
Technical Data Sheet (TDS) - Activated Alumina Desiccant

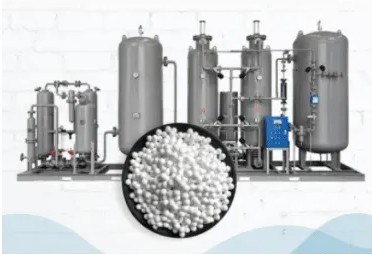

Equipment & Process System Compatibility
- Heatless Pressure Swing Adsorption (PSA) Dryers: Operates efficiently under rapid depressurization cycles without cracking.
- Heated Blower Purge Dryers: High thermal endurance ensures long service life under high desorption temperatures (180°C - 220°C).
- Instrument Air Systems: Protects pneumatic actuators, turbines, and automated process valves in oil refineries and chemical plants.
- Industrial Gas Drying: Suitable for dehydration of N2, O2, CO2, and hydrocarbon gases.
Packaging & Logistics Options
Standard Bags:
• 25 kg multi-layer paper bags with PE inner liner.
• 50 lb moisture-sealed woven bags.
• 25 kg multi-layer paper bags with PE inner liner.
• 50 lb moisture-sealed woven bags.
Bulk & Heavy-Duty Packaging:
• 800 kg / 1000 kg Jumbo Super Sacks.
• 150 kg airtight steel drums (for export ocean freight).
• 800 kg / 1000 kg Jumbo Super Sacks.
• 150 kg airtight steel drums (for export ocean freight).
